Integrate FaceGen with your software

Pitch
Overview
Design
Integration
Competitive Analysis
More Information

Pitch

Make use of the world's most realistic yet easy to use face creation tools;

  • Have your software read faces (FG files) created with FaceGen Modeller Free version,
  • Use FaceGen functionality directly in your software, or
  • Integrate FaceGen into your content creation pipeline.

The FaceGen SDKs have been licensed by game developers, universities, movie studios, and companies selling 3D authoring tools, web avatars, face recognition software and facial surgery visualization services.

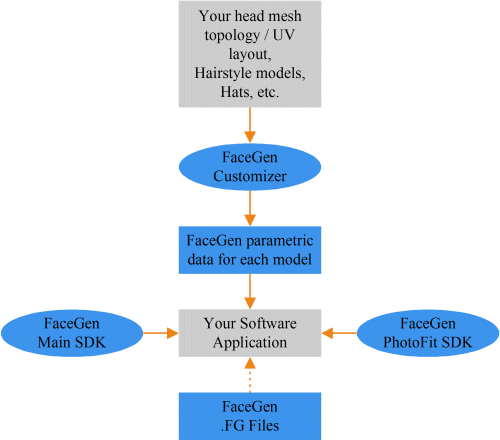

Overview

The PhotoFit SDK can turn a properly-taken photo of a face into a FaceGen-coded face in about 2 minutes per photo on a modern PC.

The Main SDK gives your end users all of the face controls seen in FaceGen Modeller so they can create and edit their own faces from scratch or edit faces from the PhotoFit.

Age Morphing

The Main SDK can also be used to create a face stored in an FG file. Since the free version of Modeller allows saving of FG files, your end users can use the full power of FaceGen Modeller on their PC then import their face into your application as an FG file. Your application retains full control over all mesh topologies and accessory models; the FG file only specifies the face shape and colouring.

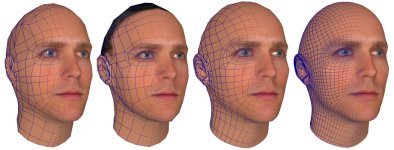

Either way, the Main SDK applies these faces to any head mesh. Use one of ours, or integrate your own using FaceGen Customizer.

The Customizer also allows you to add in you accessory models such as hair or glasses, and have them automatically fit seamlessly with any face. Or apply your faces to fantasy races. The Customizer is included with the SDK.

FaceGen is carefully designed so that animation morphs will automatically conform to any face you create.

Design

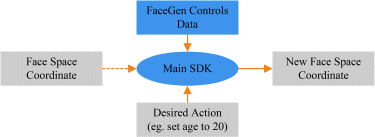

Faces are created or modified according to the various parametric controls, and represented by a 130-number coordinate vector in "face space" (these are the same numbers stored in a FaceGen FG file). In the Controls step, the face is manipulated in face space:

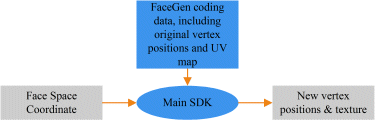

In the Coding step, a face space coordinate is used to construct a 3D textured model:

The coding step is repeated for every model which must fit seamlessly with the face; a hairstyle and glasses for instance.

Integration

The output of the FaceGen Coding stage is an updated list of vertex positions and, if applicable, a new texture image.

FaceGen shape statistics always leave the neck seam unchanged for seamless stitching to the body.

A skin colour texture can be generated for the torso or body, in order to create a seamless match.

If you prefer to put your hair, helmet, etc. into the head texture rather than a separate model, it can be composited directly onto FaceGen's skin-coloured output.

The vertex positions output from FaceGen can be used to update any kind of positional information. For instance, vertices can be used to define bone positions as well as polygonal vertices. Once the new vertex positions have been computed with FaceGen, they can be applied to your proprietary structure (polygonal, subdivision, bones, etc.) since the vertex ordering remains unchanged.

Competitive Analysis

Main SDK

The statistically derived face shape and coloring controls in the Main SDK are unique in the market. Here is a comparison with artistically created controls:

  • Pros:
    • Greater realism.
    • Many innovative face-editing controls:
      • Click-and-drag freeform shape edit
      • Genetic interface
      • Age, race, gender and 150 other parameters
      • Random face creation with or without constraints
      • Caricature and asymmetry parameters.
    • Can be applied to custom mesh topologies and UV layouts.
  • Cons:
    • Greater computational requirements.
    • Mostly limited to the face region.
    • Lack of very small shape details such as nose tip shape and wrinkles (these can be added by traditional means).

Full SDK (Main SDK + PhotoFit)

Our approach of fitting a 3D statistical model to a photograph is unique in the market. Other solutions use photo mapping, in which the final texture is a composite of the photographs. Here's how our approach compares:

  • Pros:
    • Greater realism when seen from angles different than the photograph(s).
    • Can be combined with our innovative face-editing controls.
    • Can be applied to custom mesh topologies and UV layouts.
    • Creates a bald head which can be used with any hairstyle.
    • Very low bandwidth coding of unique shape and texture.
  • Cons:
    • Greater computational requirements (2 minutes per photo on a modern PC).
    • Personalized detail limited to the face region (the rest of the head is generic).
    • Cannot use the hair in the photograph.

More Information

For more information on the API and pricing, email us or call us.
